Carinal resection and reconstruction with extracorporeal membrane oxygenation support

Introduction

Resection of the main carina is one of the most complex procedures of airway resection and reconstruction. It is defined as the resection of the tracheo-bronchial bifurcation and can be accomplished with or without pulmonary resection (1).

Carinal pneumonectomy (CP) is defined as the removal of the whole lung together with the main carina; it is usually performed on the right side while it is quite uncommon on the opposite side, although feasible in selected cases. The most frequent indication for CP is primary lung cancer with involvement of the carina or the distal trachea. Isolated carinal resection (CR) without pulmonary resection is rarer and it is performed in patients with primary tumors of the distal tract of the trachea or the carinal bifurcation (2).

One of the most difficult aspects of CR and reconstruction—both in cases of CP and CR—is providing adequate ventilation during tracheal transection. Cross-field ventilation (CFV) is usually used to overcome this aspect: the main bronchus of the remaining lung, in the case of CP, or one of the two lungs, in the case of CR, is directly intubated by the surgeon from the surgical field; sometimes jet ventilation can be added. Although this is an effective and well-established technique, it makes bronchial reconstruction quite difficult because of the presence of the tube in the bronchus and the continuous need for ventilation during the anastomotic phase (3). An adequate alternative strategy for providing adequate ventilation while performing the anastomosis is the use of the extracorporeal membrane oxygenation (ECMO). This is a cardiocirculatory and pulmonary support providing extracorporeal circulation by using centrifugal pumps and oxygenators to enrich O₂ and eliminate CO₂ (4).

In this review we focus on the intraoperative role of ECMO during CR.

History

The first experimental attempts of tracheo-carinal resections started in the 1940s: the first experiments on dogs were reported in 1949 by Grindlay et al. who performed a right CP and airway reconstruction by an end-to-end anastomosis between the distal trachea and the left main bronchus (5). Juvenelle and Citret described implant of the main bronchus (both right and left) on the lateral wall of the trachea following limited tracheal resection (6).

The first clinical experience in 1950 was reported by Abbott who repaired a major tracheal defect by transverse closure following extended right pneumonectomy (7); in 1951, Mathey first described the resection of a cylindroma of the main carina and its reconstruction by longitudinal suturing (8). Crafoord et al. reported airway reconstruction after right upper tracheal lobectomy by anastomosing the bronchus intermedius to the trachea, in 1954 (9).

In 1955, Bjork described left main bronchus resection, after aorta mobilization, and direct anastomosis of the left bronchial bifurcation to the distal trachea (10). In 1957, Barclay described a tracheo-carinal resection to resect an adenoid cystic carcinoma; airway reconstruction was accomplished by anastomosing end-to-end the distal trachea to the right main bronchus and the left main bronchus to the bronchus intermedius by an end-to-side anastomosis (11).

In 1963, Grillo described a different technique for airway reconstruction following the same type of resection: he anastomosed the distal trachea to the right main bronchus by an end-to-end anastomosis; the left main bronchus was reconnected to the trachea by an end-to-side anastomosis (12). In 1961, Woods first reported the use of cardiopulmonary bypass (CBP) for airway reconstruction following carina resection for cylindroma (13).

In 1967, Eschapasse et al. described three consecutive cases of main carina resection whose reconstruction was performed, in two cases, by an end-to-end anastomosis between the right main bronchus and trachea and an end-to-side anastomosis between the left main bronchus and bronchus intermedius. In the other case, an end-to-end anastomosis between the trachea and left main bronchus and an end-to-side anastomosis between the intermediate bronchus and the left main bronchus were performed (14).

More recently, thanks to regenerative medicine developments, bioengineering and stem cell technology were involved in the reconstructive part of carinal surgery: in 2004, Klepetko et al. described a heterotopic transplantation of the trachea together with omentum wrapping in the abdomen (15). In 2008, Macchiarini et al. described the first tracheal transplantation by replacing the left main bronchus of a patient suffering from tuberculosis with a stem cell-engineered human trachea (16); however, after initial enthusiasms, this technique did not appear feasible and safe and was thus abandoned (17).

Surgical procedures

CR without pulmonary resection

Neocarina

This is a resection technique to remove only the main carina, preserving the whole lung parenchyma bilaterally (Figure 1A). It is indicated only in the case of pure and small carinal tumors, without full main bronchi involvement. Airway reconstruction is provided by anastomosing the medial aspects of both main bronchi that are subsequently sutured to the distal trachea (Figure 1B). The most difficult part is the mobilization of the left main bronchi under the aortic arch. This is performed by median sternotomy with transpericardial approach (18).

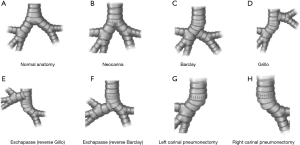

Figure 1 Classification of carinal resections. (A) Normal anatomy of the main carina; (B) Neocarina; (C) Barclay; (D) Grillo; (E) Eschapasse (reverse Grillo); (F) Eschapasse (reverse Barclay); (G) left carinal pneumonectomy; (H) right carinal pneumonectomy.

Barclay

This is indicated when a longer tract of the trachea together with the main carina needs to be resected. After trachea-carinal resection, airway reconstruction is obtained first by anastomosing end-to-end the distal remaining trachea to the right main bronchus; the left main bronchus is then anastomosed—by an end-to-side anastomosis—on the lateral aspect of the bronchus intermedius where an ovoid opening has been previously obtained (18) (Figure 1C). It may be really difficult to perform the second anastomosis with CFV; veno-venous ECMO (VV ECMO) support is an ideal and effective alternative for providing tissue oxygenation without any disturbing lines or tubes in the surgical field (2). It is performed by median sternotomy with transpericardial approach.

Grillo

This procedure is very similar to the Barclay technique; in this case airway reconstruction is obtained by anastomosing end-to-end the remaining distal trachea to the right main bronchus; the left main bronchus is then anastomosed to the lateral aspect of the trachea where an ovoid opening has been previously obtained (18) (Figure 1D). As with the Barclay technique, the second anastomosis can be very difficult, particularly in the case of CFV; VV ECMO support is an excellent oxygenation strategy during this procedure (2). It is performed by median sternotomy with transpericardial approach.

Eschapasse

After completing the tracheo-carinal resection, airway reconstruction is obtained by anastomosing first the distal trachea to the left main bronchus. The right main bronchus is then anastomosed by an end-to-side anastomosis to the lateral aspect of the tracheal wall (reverse Grillo technique) (Figure 1E) or, more rarely, to the medial wall of the left main bronchus where an ovoid opening has been previously performed (reverse Barclay technique) (18) (Figure 1F). As with the Grillo and the Barclay techniques, VV ECMO is an effective oxygenation strategy during this operation (2). It is performed by median sternotomy with transpericardial approach.

CR with pulmonary resection

Left carinal pneumonectomy

In this procedure, the standard approach is left thoracotomy if no more than one centimeter of the distal trachea and right main bronchus have to be resected; median sternotomy is mandatory when a longer section of the distal trachea needs to be resected.

Deep isolation beneath the aortic arch is performed, taking care not to injury the left laryngeal nerve, whenever possible; to maximize carinal exposure from the left side, Botallo’s ligament has to be transected and the aortic arch needs to be gently retracted.

Pulmonary artery and veins are divided, the distal trachea and the left main bronchus are transected first; the right main bronchus is transected last. The anastomosis is then performed between the distal trachea and right main bronchus where the ventilation tube is placed in case of CFV (Figure 1G); due to the unfavorable surgical field, ECMO support is strongly recommended during the reconstructive phase of this operation (2).

Right carinal pneumonectomy

It is usually performed by right thoracotomy; care must be taken when encircling the distal trachea to avoid left laryngeal nerve damage. The left main bronchus is transected first and then the distal trachea. When CP is performed by CFV, at this point the left main bronchus is intubated from the surgical field and adequate ventilation is provided to the left lung. The distal trachea and the left main bronchus are anastomosed with the ventilation tube still inside the left main bronchus (Figure 1H); this part of the procedure can therefore be challenging and VV ECMO support allows tracheo-bronchial anastomosis to be performed without any interfering tubes in the surgical field. After completing the anastomosis, several more stitches are required to obtain a tension-free anastomosis; a pedicled fat flap is also recommended to separate vascular and bronchial structures in order to prevent catastrophic bronchovascular fistula (19). This procedure is indicated when no more than four centimeters of the trachea need to be removed (Figure 2). In every case of CR and reconstruction, with or without pulmonary resection, we recommend neck flexion for a week after the procedure by applying stitches between chin and presternal tissue (Figure 3).

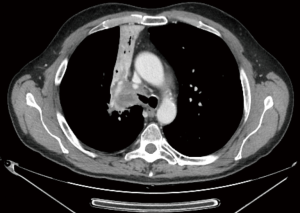

Figure 2 Computed tomography disclosing carinal infiltration from primary lung cancer of the right main bronchus, requiring right carinal pneumonectomy.

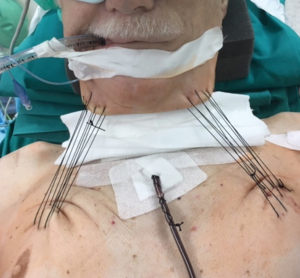

Figure 3 Neck flexion is recommended for a week after the procedure by stitches applied between chin and presternal tissue. This image is published with the patient’s permission.

ECMO-assisted CR

ECMO is a cardio-pulmonary system providing cardiac, pulmonary and circulatory support in the case of cardiac and/or respiratory failure. It can temporarily support cardiac and pulmonary functions until they are restored or, in more advanced cases of pulmonary failure, until lung transplant (20). Indications for ECMO in general thoracic, non-cardiac, surgery, is usually limited to post-pneumonectomy acute respiratory distress syndrome (ARDS), pediatric surgery for tracheobronchial congenital disorders and lung transplants (21).

ECMO allows extra-corporeal circulation; its basic tools are the oxygenator—providing blood oxygenation and CO₂ removal—and non-occlusive centrifugal pumps to replace cardiac function.

According to site and type of vessel cannulation, ECMO can be peripheral or central, offering partial or complete cardio-circulatory support; veno-arterial ECMO (VA ECMO), supporting both cardiac and pulmonary function, and VV ECMO, replacing only respiratory function allowing blood enrichment of O₂ and CO₂ removal, are also possible (22).

VV ECMO is the preferred choice for supporting respiratory function during CR; cardiac instability should therefore be excluded before surgery. Jugulo-femoral or femoro-jugular cannulations are the most frequently used techniques in this setting; however, femoro-femoro cannulation or solely jugular cannulation by double lumen single cannula can be considered; as arterial cannulation is not required, vascular complications related to cannulations technique are quite uncommon. Our favourite cannulation is jugulo-femoral cannulation which resulted always effective except one case that required central atrial cannulation.

ECMO handling appears superior to standard CBP for CR: in fact, it requires lower anticoagulation times and lower doses of heparin at cannulation, thus reducing the risk of intra and post-operative major bleeding, particularly in the case of CP. The ECMO support during CR is usually limited to the reconstructive phase—usually shorter than half an hour—thus further reducing the risk of pulmonary embolism.

The major advantage of intraoperative ECMO support during CR and reconstruction is avoiding the need for CFV thus allowing easier and faster anastomosis; moreover, if safe extubation is not possible at the end of the procedure, peripheral ECMO can be prolonged during intensive care stay. On the other hand, a higher risk of postoperative haemothorax should be taken into account, as well as potential vascular complication related to cannulation. Although doubts about neoplastic cell seeding during ECMO in neoplastic patients have been reported in the past (23), there are no clear data supporting the theoretical risk of neoplastic cell scattering; nevertheless, we recommend starting VV-ECMO only after closure of pulmonary artery and veins, limiting its support to just the airway reconstruction phase. To further investigate the potential impact of ECMO on tumor spreading, a prospective, double-arm, observational study is on-going in our department, comparing the number of circulating tumor cells (CTC) before and after the resection—in patients belonging to the same stages—operated with or without ECMO (24).

ECMO blood flow during CR should provide arterial oxygenation ranging at least between 85% and 95%; lower values, due to a low ECMO circuit flow, may result in severe brain and coronary ischemic injuries (25).

In the case of AV ECMO, adequate cannula positioning is extremely important to prevent the so-called “Harlequin syndrome” that may be observed if the tips of the cannulas are too close to each other: in this case, in fact, the oxygenated blood goes directly to the tip of the draining cannula instead of reaching the pulmonary artery. As consequence, there is a “recirculation” effect with impaired perfusion of the upper body, resulting in ischemia of the heart and brain and cyanosis of the upper extremities. In this case, the arterial cannula needs to be rapidly repositioned within the aorta or the subclavian artery (26).

In our experience, from November 2018 to November 2019, we performed six ECMO-assisted tracheal sleeve pneumonectomies for non-small cell lung cancer; median operatory time was 201 minutes (range, 162–292 minutes), and mean duration of VV-ECMO was 38 minutes (range, 31–45 minutes). We had one case of post operative haemothorax. At the time of follow-up, 5 patients were alive with non-evident disease (NED) and one was alive with disease (AWD) presenting bone metastasis treated by radiation therapy (27).

Conclusions

CR is a challenging procedure in thoracic surgery; there are several different techniques for airway reconstruction depending on the localization of the tumor and its extension. CFV usually provides adequate support to guarantee tissue oxygenation after tracheal transection; however, airway reconstruction can sometimes be very difficult because of the presence of the ventilation tube in the bronchus to be anastomosed.

VV-ECMO is an effective alternative to CFV, allowing tissue oxygenation and CO₂ extraction without the need for tubes in the surgical field. Care should be taken when cannulating vessels and in managing the ECMO flow during the procedure, in order to prevent major complications.

ECMO-assisted CR should be performed by multidisciplinary teams with high-volume experience both in oncologic thoracic surgery and mechanical cardio-respiratory support.
