Radiologic diagnosis of tracheoesophageal fistula in children

Introduction

Tracheoesophageal fistula (TEF) can be either congenital or acquired and has numerous causes. Congenital TEF is more frequently associated with esophageal atresia (EA) and very rarely with tracheal agenesis (TA). TEF and EA are relatively common congenital anomalies with a total worldwide prevalence of 2.99 per 10,000 (1). EA/TEF requires surgical repair but there are many postoperative complications after surgery, one of the most serious of which is recurrent TEF (2). Despite the developments in surgical techniques and improvement of postoperative intensive care, the incidence of recurrent TEF following EA/TEF varies from 3% to 14% (2). Acquired TEF can be iatrogenic (e.g., due to prolonged intubation) or due to the ingestion of corrosive materials. Button battery (BB) ingestion is a major cause of acquired TEF in children. Although disk-shaped BBs have been used for almost 30 years, the major complications involving esophagus had increased almost 7-fold in the last decade (3).

Radiological evaluation of TEF in children starts prenatally at approximately 20^th gestational week and continues in the postoperative period. Various imaging modalities have been utilized in different time courses regarding to their benefits and disadvantages. Indication and imaging modality should be individualized for each patient with a consensus of radiologist, pediatric surgeon, and pediatrician. This particular review will outline the advantages and disadvantages of the radiological imaging modalities in different kinds of TEF in children. Malignant TEF, seen predominantly in adults, will not be covered in this review.

Congenital TEF with or without EA

EA is the most common congenital anomaly of the esophagus with an incidence of 1 in 2,500 to 4,500 live births (4). EA is defined as a complete interruption of the esophageal lumen (5). It can be present with or without a TEF. TEF is a congenital anomaly due to abnormal septation of the caudal foregut during the 4^th and 5^th weeks of embryonic development. The most commonly used classification system for EA/TEF is Gross classification (Figure 1) (6). According to this classification system, EA types are; Type A (isolated EA), Type B (EA with proximal TEF), Type C (EA with distal TEF), Type D (EA with proximal and distal fistulas), and Type E (H-type fistula). Gross Type C EA/TEF, is the most common type, comprising approximately 88.5% of cases followed by Type A (8%), Type E (4%), Type D (1.4%), and Type B (0.8%) (5).

Figure 1 Illustration of Gross classification types.

Infants having EA with TEF are 50% more likely than isolated EA to have congenital anomalies, with VACTERL [vertebral anomalies (V), anal atresia (A), cardiac anomalies (C), TEF (T), EA (E), renal anomalies (R), and limb anomalies (L)] being the most common association (7). Vertebral anomalies accompany in 60% to 90% and limb anomalies occur in 40% to 55% of cases with VACTERL association (8). In the study of Laffan et al. (9) on isolated H-type TEF, 10% have VACTERL association, 5% have CHARGE association (coloboma, heart defects, choanal atresia, growth retardation and ear abnormalities) and 10% have right-sided aortic arch. Radiographic evaluation is crucial for outlining the anomalies polydactyly, hypoplasia, length discrepancy, and to determine the need for surgical intervention. Renal anomalies affect 50% of patients; ultrasonography (US) and voiding cystourethrogram can help to detect and manage the infection and vesicoureteral reflux (1,8). A wide variety of congenital lung disorders, including pulmonary and lobar agenesis, horseshoe lung and pulmonary hypoplasia, may also accompany EA/TEF (5). However, bronchial anomalies are more frequent than lung anomalies in neonates with EA/TEF (5). A bronchus that originates from the esophagus called ‘esophageal bronchus’ especially in H-type TEF cases is uncommon (10).

H-type TEF is a rare anomaly and comprises only 4% of the congenital TEF. H-type TEF occurs between the level of the 5^th cervical vertebra and 2^nd thoracic vertebra in up to 70% to 80% of patients and courses in an oblique route like the letter “N” instead of “H”, from the posterior wall of the trachea to the anterior wall of the esophagus (9,11). The typical presentation of H-type TEF is at the early infancy period with symptoms of coughing, choking during feedings, apnea and recurrent pneumonia because of aspiration (8,12). Abdominal distention due to the passage of air from the trachea to the esophagus may also occur (11). In patients with H-type TEF, chest X-ray may reveal air distended esophagus or megaesophagus as a large radiolucent column in the mediastinum (11). H-type TEF can be asymptomatic until adolescence or adulthood due to lack of aspiration, because of the possibility of a valve-like mucosal flap which may close while swallowing (12). Delay in the diagnosis and treatment of the H-TEF may lead to significant morbidity with recurrent chest infections, bronchiectasis and failure to thrive (9).

Congenital esophageal stenosis in the distal esophagus is associated with EA/TEF. An abnormal communication between the respiratory and digestive tracts during embryonic development results in TEF and abnormal incorporation of the respiratory tissue in the esophageal wall results in congenital esophageal stenosis. It is most common in H-type TEF (21%) (13). The incidence of congenital esophageal stenosis is varying between the range of 0.4% to 14% probably due to misdiagnosis (14,15). Newman et al. (16) reported that esophageal stenosis was missed on one or more contrast swallowed fluoroscopic studies in 14 of 18 children with congenital esophageal stenosis, although retrospective evaluation revealed esophageal narrowing on the prior fluoroscopic images in the majority of cases (16). Therefore, radiologic evaluation is very important for early and accurate diagnosis, especially in fluoroscopic examination. If smooth and segmental tapering of the esophagus with proximal dilatation is seen between EA/TEF lesion and gastroesophageal junction, the presence of congenital esophageal stenosis should be considered (13). Meticulous evaluation of the esophageal movement under fluoroscopy can help to determine the actual degree and length of esophageal stenosis. Patients with achalasia like findings should be evaluated with esophagogram after EA/TEF repair to avoid delayed diagnosis of distal stenosis (11,13). Newman et al. (16) suggested using a nasogastric tube to distend the esophagus during contrast esophagogram if this is not achieved with normal swallowing to improve diagnostic accuracy.

Imaging methods

Plain radiographs are generally initial imaging modality performed in these patients not only for detecting the tracheoesophageal anomalies but also associated bone anomalies. The presence of air in the esophagus on plain posteroanterior and lateral projections of the chest X-ray is an important indicator for EA (17). If EA is suspected in the first few hours of life, placement of a flexible feeding catheter should be attempted. Contrast injection into the pouch (pouchogram) is not typically necessary for confirmation of the diagnosis and can lead to aspiration, although air may improve its identification and elucidate proximal pouch length (10) (Figure 2). A completely gasless abdomen indicates Type A or Type B EA/TEF. Gas in the stomach and bowel segments is seen in Types C, D and E.

Figure 2 Posteroanterior (A) and lateral (B) pouchogram of Type A (isolated) esophagus atresia. Oral contrast fills the proximal atretic esophageal pouch (asterisk). On lateral image, a few amount of contrast is seen in the trachea anteriorly due to aspiration.

The most useful diagnostic imaging method for TEF includes esophagogram with water-soluble contrast (12). The examination to demonstrate H-type TEF should begin with a single contrast esophagogram using pulsed digital fluoroscopy in the right lateral to slightly right anterior oblique position. Achieving full distention of the esophagus is the key point of the examination (10). Some authors suggested that contrast swallow can be used for the diagnosis of TEF and demonstrate fistula in up to 80% of cases, while other reports indicated that, contrast swallow studies is not an effective technique to reveal the fistula (9,17). If there is suspected fistula that is not seen with contrast swallow study, the nasogastric catheter should be placed and fluoroscopic visualization of injected contrast medium at various levels of esophagus, starting from just below the carina, with the patient in lateral or prone-oblique position (18,19).

Slow retraction of catheter, delicate infusion of contrast and attentive fluoroscopic monitoring allow constant visualization and help to prevent excessive flow into the trachea lumen (Figure 3). It should also be stressed for the intubated patients that the endotracheal tube may obstruct the orifice of the fistula, preventing contrast material leakage from the esophagus through the fistula into the trachea. In that situation; turning the patient to the contralateral decubitus position can solve the problem (9).

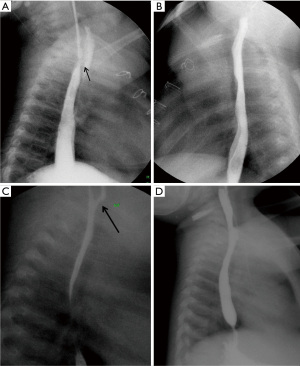

Figure 3 Fluoroscopy images of an eight-month-old boy with a history of operated tetralogy of Fallot demonstrate contrast injection into esophagus from catheter demonstrates H-type fistula (arrow) (A). On postoperative image, connection is not seen (B). Fluoroscopy images (C,D) of another seven-month-old boy with recurrent pulmonary infections after contrast injection into esophagus through catheter reveals H-type fistula (arrow) (C). Fistula is not seen in the postoperative image (D).

There are some other disorders that can be misinterpreted as TEF on a contrast esophagogram. Laryngeal cleft, also known as laryngotracheoesophageal cleft, is a rare congenital anomaly with an estimated incidence of 1 in 10,000–20,000 live births (20). Laryngeal clefts should not be diagnosed as TEFs because each entity has a different management algorithm and misdiagnosis may lead to delayed definitive treatment. Although most of the laryngeal clefts are visible on laryngoscopy, in rare occasions esophagogram is required for clefts extending to the trachea (20). The main distinguishing feature between TEF and laryngeal cleft is the location of the connection. TEF has an abnormal connection between the trachea and esophagus whereas in laryngeal cleft, the fistula is between the larynx and esophagus. Involvement of the trachea can be seen in the more severe forms.

Aspiration of contrast material is another entity that can be suspected of fistulous connection when contrast material is noted in the trachea. Aspiration is observed more common in contrast swallow studies than catheter placed studies (9). Therefore, a pullback catheter esophagogram is indicated in patients who are intubated, who have a history of recurrent aspiration pneumonia and if there are associated abnormalities that significantly increase the risk of aspiration (9).

If radiological methods are unable to demonstrate fistula, bronchoscopy with simultaneous instillation of methylene blue into the esophagus can be performed as a complementary study (17,19). Various anatomical features are important to define in imaging for prognosis, such as; the inter-pouch distance, position of fistula, laterality of the heart and right-sided aortic arch (21). About 2.5% of patients will have a right-sided aortic arch that should be identified before esophageal repair which is performed on the opposite side of the arch (10).

Temporal and contrast resolution of computed tomography (CT) has substantially developed over the years, and many authors have advocated the use of CT scan in preoperative evaluation of EA/TEF patients, as it is a quick non-invasive procedure that precisely delineates the anatomy of the TEF and the inter-pouch gap (22). With “minimum intensity projection (MinIP)”, “multiplanar reformation (MPR)” and “virtual bronchoscopy” image reconstruction techniques, two esophageal pouches can be easily delineated on a single image (Figure 4) (23). To display TEF more clearly, examination should start with the aspiration of mucus from upper pouch and filling it with air (22). However, cost-effectiveness and associated radiation hazards raise concern regarding to utilization of this technique. Furthermore, some authors consider that CT can provide good anatomical delineation, but may not help in surgical decision making. Mahalik et al. (23) reported that CT failed to demonstrate the fistula in 20% of Gross type C cases. Consequently, preoperative CT as a diagnostic method has been a controversial topic (21-23).

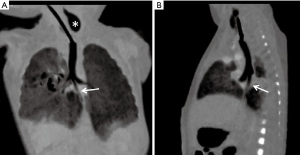

Figure 4 Coronal reformatted MinIP (A), and sagittal reformatted MinIP (B) images of Gross Type C (EA with distal TEF) disorder. Atretic proximal esophagus is seen as an air filled pouch in the cervical region (asterisk) and distal esophagus connected to the tracheobronchial system at the level of carina (arrows). MinIP, minimum intensity projection; EA, esophageal atresia; TEF, tracheoesophageal fistula.

Fetal ultrasound after 20^th gestational weeks can detect TEF and EA. “Pouch sign”, which is caused by dilatation of the blind-ending upper esophageal segment during fetal swallowing, is considered to be the most consistent indicator of EA on prenatal imaging with a reported positive predictive value as high as 100% (24). However, detection of the pouch sign on ultrasound can be very challenging, as it depends on fetal position, mobility and active fetal swallowing during the examination. Additional useful findings are polyhydramnios in the setting of small or absent stomach; however, these features are nonspecific and occasionally transient in nature (1). Bradshaw et al. (25) stated that the overall sensitivity of prenatal ultrasound to identify TEF/EA was 26% with 99% specificity and 35% positive predictive value with no significant postnatal outcome. The accuracy and sensitivity of prenatal ultrasound scans increase to 57% when completed in tertiary centers. In a multicenter study of Oztan et al. (4), among 331 cases with EA with TEF, antenatal ultrasound reveals polyhydramnios in 39%. On the other hand, polyhydramnios was seen in 60% of 58 patients with isolated EA. They also revealed a pouch sign in 14.9% by perinatal ultrasound (4).

The use of fetal magnetic resonance imaging (MRI) to diagnose EA is promising. Fetal MRI may improve diagnostic accuracy by the identification of pouch sign better than ultrasound however; data on both comprehensive ultrasound and MRI are limited and deserve further investigation (24). T2-weighted single shot and balanced steady-state free precession sequences are the most valuable sequences to demonstrate a fluid-filled upper esophagus. Serial sagittal images at a single level in the midline can be obtained more than 20-second intervals to evaluate fetal swallowing and the transient distension of the proximal esophageal lumen (24). Langer et al. (26) found 100% sensitivity, 80% specificity, and 83% positive predictive value using MRI to diagnose 5 cases of confirmed EA based on the non-visualization of the thoracic esophagus. Ethun et al. (24) reported that esophageal pouch sign was seen with fetal MRI in 83% of our patients with confirmed EA. They also found 100% specificity and positive predictive value using MRI to diagnose EA based on the identification of an esophageal pouch (24).

Postoperative imaging is crucial for patients. Abnormal esophageal peristalsis can be seen in 75% to 100% of children after EA surgery (100% of those with colonic interposition) confirmed by manometry. Discoordinated contractions and segmental immotility can be assessed by contrast swallowed esophagogram (5). Occasional dysphagia after EA surgery becomes permanent in 53% to 92% of adults and daily dysphagia is reported 13% to 20%. These symptoms and postoperative esophagogram findings of dysmotility are less frequent for H-type TEF. Chetcuti et al. (27) reported that 65% of patients operated for H-type TEF were admitted for GI symptoms during the first 10 years of life, but symptoms have remained in only 3% of those older than 18 years of age.

Anastomotic leak is one of the most common early complications of surgical repair, occurring in up to 17% of patients (28). Although 95% resolve spontaneously or with pleural drainage, esophageal stricture may follow in half of the cases (29). Gastroesophageal reflux is another extremely common disorder with congenital EA/TEF occurring in up to 35% to 58% of cases (17). The definitive surgical treatment is a Nissen fundoplication and 13% to 25% of patients with a history of EA/TEF require fundoplication (17). Upper GI contrast-enhanced studies can demonstrate reflux from stomach to esophagus during postoperative esophagogram.

TEF after EA repair

The communication between the esophagus and airway (trachea or bronchi) following EA repair can recur in 3% to 14% of cases (12). Recurrent TEF occurs most frequently 2 to 18 months after initial surgery and patients generally present with cough, choking, cyanosis during feeding, and recurrent pneumonia (18,26). These symptoms are often difficult to distinguish from those of tracheomalacia and gastroesophageal reflux that occur frequently in infants who already had congenital EA (18). Since the first report of Ladd about recurrent TEF in 1944 (30), there are many studies in the literature regarding to this issue.

According to Smithers et al. (2), postoperative TEFs can be divided into three types. The first type is congenital TEF that persists after repair because it was either missed or the repair attempt was insufficient. These fistulas are present immediately after the repair attempt. Most of the missed TEFs are seen in proximal H type fistula (2). The second type is the recurrent TEF which present in the same location as the primary congenital TEF. Majority of these fistulas are seen in Gross Type C EA (EA with distal TEF) repair with the TEF forming between the esophageal anastomosis and the tracheal diverticulum, but can also occur after proximal H-type TEF repair. The third type is the acquired TEF which occurs due to inflammation and mediastinitis in a new location on either the airway side or the digestive side (31). These fistulas include communications between the esophageal anastomosis and the trachea, a segmental bronchus, pleural cavity or directly pulmonary parenchyma (Figure 5).

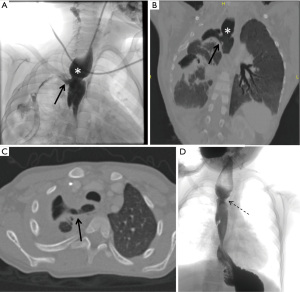

Figure 5 Fluoroscopy image (A) of a six-year-old girl with a history of EA/TEF operation and multiple endoscopic esophageal dilatations demonstrates contrast flow (arrow) from esophagus (asterisk) to right pleural cavity and drains to the pleural tube. Coronal reformatted MinIP (B) and axial CT images (C) in the same week reveal fistula (arrow) between esophagus (asterisk) and pleural cavity, pleural thickening, effusion and atelectasis of right lung. Eight months later (D), fistula was resolved without any surgery but esophageal stricture (dashed arrow) was noted. EA, esophageal atresia; TEF, tracheoesophageal fistula.

Anastomose leak after EA repair is thought to be the leading cause of recurrent TEF (32). Recurrent TEF following anastomose leak due to initial EA repair was reported to be 45.8% to 68% in different studies (18,32,33). It is also more often seen in children with concomitant congenital esophageal stenosis (14). Recurrent TEF following repair of EA is often part of a more complex complication such as; tracheomalacia that impairs airway clearance, tracheal diverticula that promote depositing of secretions and infection, esophageal strictures that increase the pressure gradient between the esophagus and the trachea, and gastroesophageal reflux that causes airway irritation (5). Smithers et al. (2) suggest that using the terms of “esophagobronchial fistula” and “esophagopulmonic fistula” to define postoperative fistulas may be more accurate for those complex cases. Additionally, stricture and severe inflammation around the anastomosis are common findings and can be demonstrated on esophagogram after EA repair (31). For postoperative strictures, balloon dilation is a safe procedure in the treatment of strictures, though it is considered a risk factor for recurrent TEF development (31).

The primary and the most efficient imaging method for recurrent TEF is esophagogram with water-soluble contrast material given through the nasogastric catheter. Alternative imaging method is bronchoscopy; however, it is reserved for inconclusive cases due to invasive procedure. In the study of Wang et al. (18), the sensitivity of esophagogram and bronchoscopy regarding to recurrent TEF is 91.4% and 88.6% respectively. Bronchoscopic diagnosis and catheter placement to the recurrent TEF is more challenging than primary TEF because of the abnormal localization of the fistulas especially for acquired TEF and missed congenital TEF (31). If these methods are ineffective to demonstrate fistula, then diluted methylene blue is injected into the old pit of the initial TEF division with a gastroscope placed in the esophagus (19).

Recurrent TEF is difficult to diagnose and may be missed quite easily on routine contrast swallowed upper GI series, especially if a prone pull-back method is not used (18). The best way to demonstrate fistula clearly is to place a catheter down the esophagus to the gastroesophageal junction, place the infant prone, and inject contrast medium into the esophagus while the tube is pulled back into the proximal esophagus (18,19).

In patients with a second recurrence of TEF, both re-anastomosis and esophageal replacement (colonic interposition) had been successfully applied in previous studies, but there are controversies in the literature regarding to preservation of native esophagus (18).

Tracheal agenesis with TEF

Tracheal agenesis is a rare and essentially lethal congenital abnormality with approximately 200 cases reported in the literature since its initial description in 1900 (34). Commonly used classification system for tracheal agenesis was defined by Floyd et al. as follows; type I: agenesis of the proximal trachea with a normal caudal segment of the distal trachea and a TEF, type II: total TA with normal main bronchi fusing in the midline at the carina (a tracheoesophageal fistula may or may not be present), type III: complete TA with a separate origin of the main bronchi from the esophagus (35). Floyd type II is the most common type of TA and TEF accompanies tracheal agenesis in 94% of patients (35,36).

Prenatal presentation of tracheal agenesis is consistent with congenital high airway obstruction syndrome (CHAOS) if a connection with esophagus is not present. In cases with co-existing TEF; lung fluid can pass through the TEF to the stomach or amniotic sac and the lungs have a normal sonographic appearance (36). Polyhydramnios is reported prenatally in up to 50–72% of patients with tracheal agenesis, with or without esophageal distention but these findings are nonspecific and raise the possibility of an EA with TEF (35,36). Esophagogram and CT can be used postnatally to depict types of tracheal agenesis with TEF, with additional findings including low carinal position, flattened carina with horizontal bronchi and broadened mainstem bronchi (Figure 6) (37). MRI, both fetal and neonatal, may be useful for describing tracheoesophageal abnormalities if the esophagus is sufficiently distended (36).

Figure 6 Newborn girl born with respiratory distress could not intubate via tracheal intubation. On chest CT (A), proximal trachea was not seen and carina (square) communicated with distal esophagus (asterisk). On fluoroscopy (B), contrast injected through nasoesophageal tube (dashed arrow) and flows into both main bronchi (arrows) and right lower bronchi. The baby died at the sixth day and the autopsy confirmed the diagnosis of Floyd type 2 tracheal agenesis.

Iatrogenic TEF due to tracheal intubation

Prolonged tracheal intubation is one of the main causes of TEF, even though the introduction of high volume and low-pressure endotracheal tube cuffs has reduced the incidence of this complication (38). The incidence is between 0.3% and 3% in patients with prolonged mechanical ventilation and tracheostomy does not seem to be effective to reduce the risk of TEF (28). Chronic pressure on the posterior membranous wall of trachea by the hyper-inflated endotracheal tube cuff along with a rigid nasogastric tube in the esophagus produces ischemic necrosis that affects both the anterior wall of the esophagus and the posterior wall of trachea. Frequently, tracheal stenosis co-exists at the level of connection (38). Possible risk factors are high airway pressure during mechanical ventilation, excessive mobility of the endotracheal tube, prolonged time of intubation, steroid treatment, poor nutritional status, chronic hypoxia in cardiopulmonary diseases, chronic anemia, sepsis and gastroesophageal reflux (28,39).

On imaging, chest radiographs—especially lateral projection—may show the dilatation of the esophagus distal to the fistula. It can also reveal the findings of pulmonary aspiration of gastroesophageal content (40). The esophagogram is especially useful where endoscopy is not available. Ingestion of a small amount of water-soluble contrast agent usually reveals the site of the fistula and the abnormal route of the contrast agent into the tracheobronchial tree (38). CT is generally not required for the diagnosis of acquired TEF due to intubation, but it can be performed for complications such as mediastinitis and pulmonary abscess or necrotizing pneumonia.

Acquired TEF due to BB ingestion

The use of button batteries is becoming more common in electronic devices, such as children’s toys, and the potential damage after ingestion has been well documented (41). The recent increase in morbidity and mortality associated with BB ingestions is presumably due to the increased diameter of button batteries on the market and a transition to lithium cells (42). Children less than 5 years of age who ingest batteries 20 mm or greater in diameter are at particular risk for catastrophic complications (43). Pugmire et al. (42) reported that the vast majority (92.6%) of button batteries retained in esophagus are 20 mm or larger in diameter, in contrast to batteries that pass distal to the esophagus being measured 13.7±1.6 mm on average diameter. The most common site of esophageal impaction is the distal esophagus (40.7%). Of children who ingested batteries 20 mm or larger in diameter, only 1.8% had major complications including TEF and perforation (42).

Radiography remains the primary imaging modality to assess suspected BB ingestions, as well as other foreign body ingestions, but additional imaging modalities should be performed for associated complications (42). Owing to urgent management of treatment course by immediate endoscopic removal within 2 hours, fluoroscopic upper GI examinations are rarely performed for diagnosis. In patients with suspected TEF, contrast studies can be used to demonstrate the connection, however, it may not be easy and dangerous because of strictures, mucosal fragility and excessive inflammation (44).

In 2015, the North American Society for Pediatric Gastroenterology, Hepatology and Nutrition (NASPGHAN) suggested a new algorithm in terms of imaging modality, CT or MRI, to manage ingested button batteries (3). In patients with any esophageal injury is identified on endoscopy following BB ingestion, the guidelines recommend considering CT angiography of the chest to assess for aortic injury and MRI to assess for inflammatory changes near the esophagus and aorta (3).

Conclusions

Although the prognosis of newborns with TEF with or without EA has improved over the years, with a survival rate of 85% to 95%, associated anomalies and postoperative complications change long-term outcomes significantly (45). Radiological evaluation is crucial to reveal associated anomalies and complications, to predict the outcome and to prevent the delay in appropriate treatment approach, which can lead to long-term complications. The appropriate selection of optimal imaging methods for each case with an attentive examination would provide better patient management.
